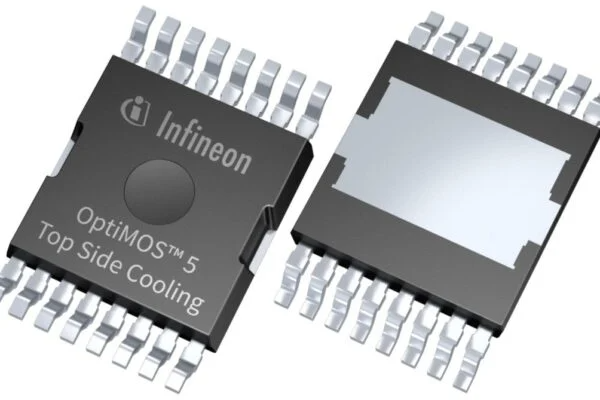

Infineon Technologies is expanding its range of 60V and 120V automotive MOSFETs with high power TOLL, TOLG and TOLT packages with topside cooling.
The automotive MOSFETs have a compact form factor with very good thermal performance combined with excellent switching behaviour for 24 V-72 V electronic control units (ECUs) as 2- and 3-wheelers as well as light vehicles are increasingly being electrified.
The six OptiMOS 5 products have a tighter gate threshold voltage (V GS(th)) to enable designs with parallel MOSFETs for increased output power capability.
- ECU software combines cybersecurity, on-board diagnosis
- Powering car electronics with no switching noise
The IAUTN06S5N008, IAUTN06S5N008G and IAUTN06S5N008T are 60 V MOSFETs, and the IAUTN12S5N017, IAUTN12S5N018G and IAUTN12S5N018T are 120 V MOSFETs.
The on resistance (R DS(on)) ranges from 1.7 mΩ to 1.8 mΩ for the 120 V automotive MOSFETs and is 0.8 mΩ for the 60 V MOSFETs. This makes the 60V MOSFETs suited for high power 24 V supplied CAV applications or for HV-LV DCDC converters in xEVs.
The 120 V MOSFETs are used in 48 V – 72 V supplied traction inverters for 2- or 3-wheelers and light electric vehicles.
Samples of the new OptiMOS 5 automotive MOSFETs can be ordered now.
www.infineon.com/automotivemosfets.
